Indoor SMD LED Technology

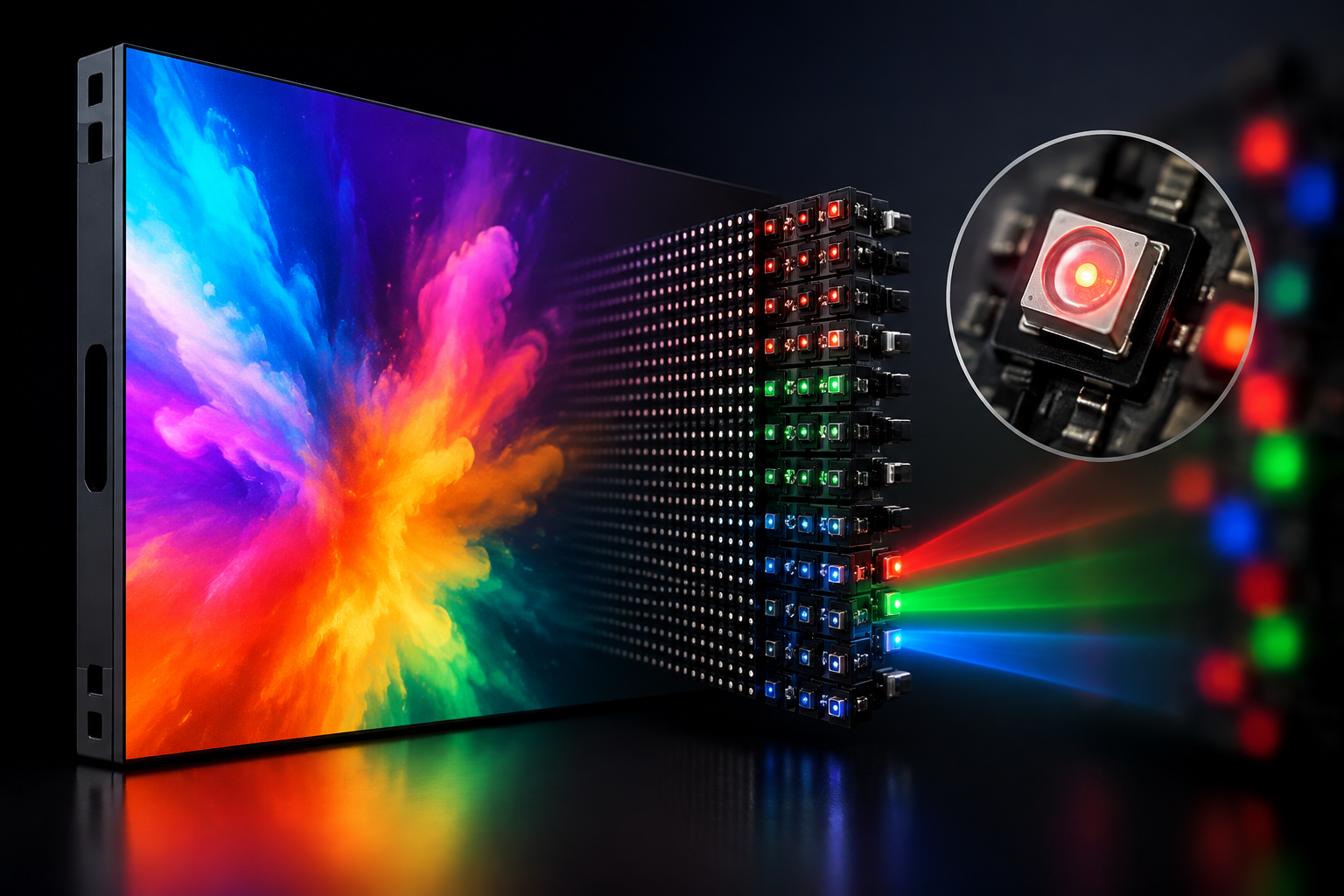

Advanced surface-mounted LED technology delivers accurate color reproduction, wide viewing angles, and consistent brightness across all Optima Plus pixel pitch models.
SH Display Systems introduces the Optima Series, a premium indoor LED display solution crafted for exceptional visual precision and refined commercial environments. Designed for spaces where display quality and presentation are critical, the Optima Series delivers ultra-smooth visuals, vibrant color performance, and a seamless viewing experience. Built with precision-engineered lightweight cabinets, the system offers clean installation aesthetics and long-term operational reliability. The Optima Series is ideal for luxury retail spaces, corporate environments, control rooms, auditoriums, experience centers, and premium indoor installations where superior visual performance and elegant design are essential. Engineered for demanding commercial applications, Optima combines premium build quality with advanced display performance to create impactful digital experiences
Advanced surface-mounted LED technology delivers accurate color reproduction, wide viewing angles, and consistent brightness across all Optima Plus pixel pitch models.

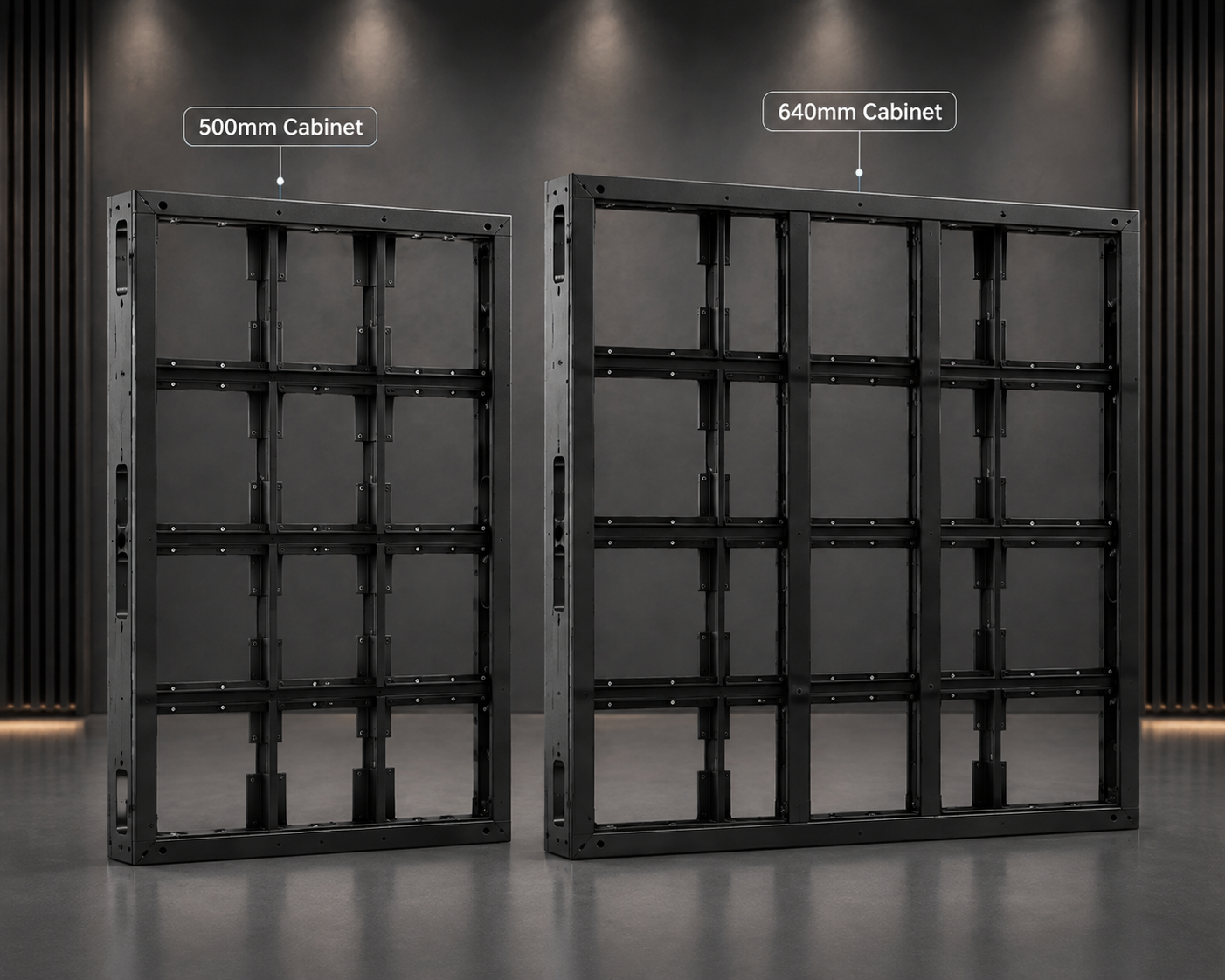

500×500mm and 640×640mm cabinet options provide installation flexibility for any wall size, aspect ratio, and venue requirement.

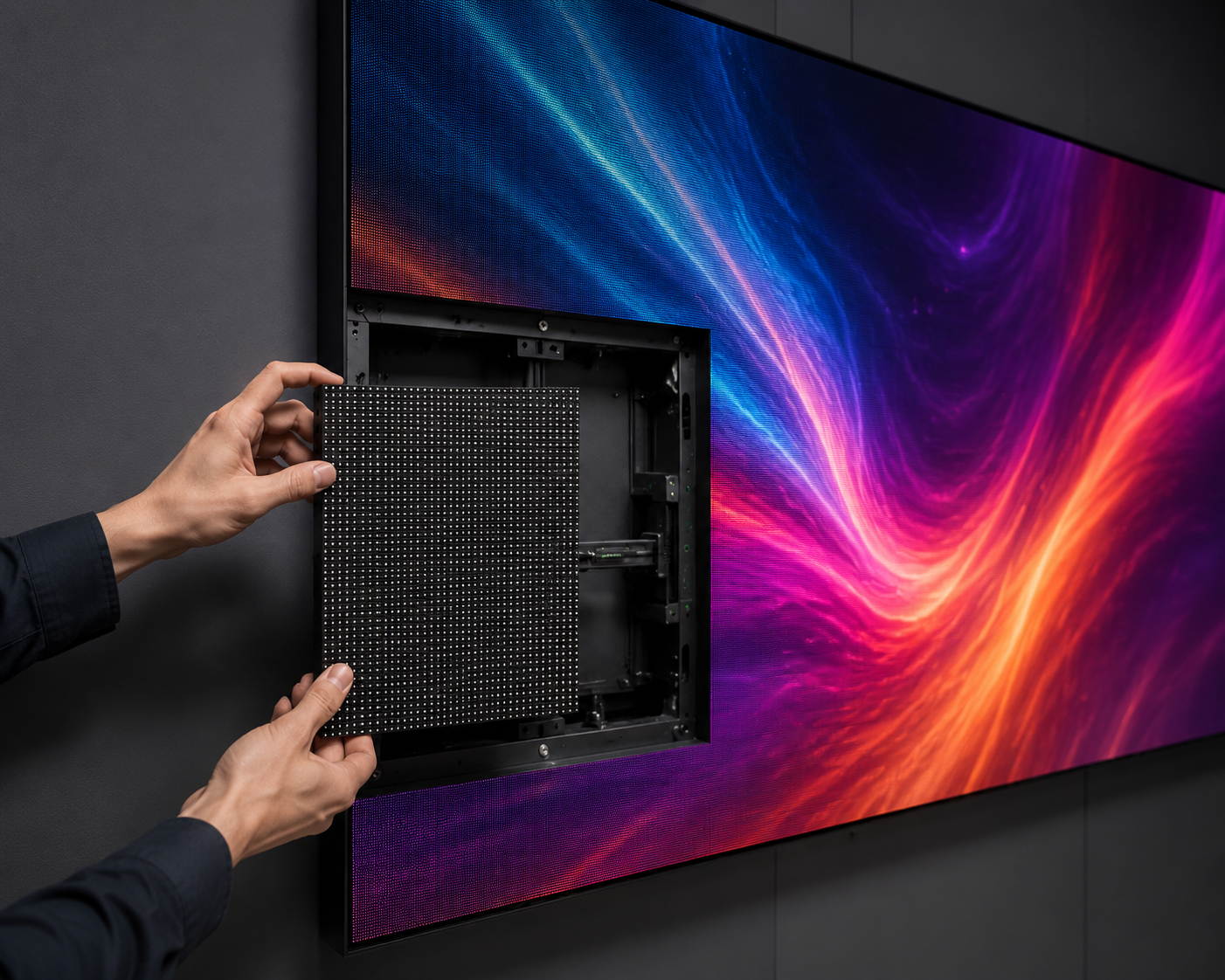

Complete front-only servicing enables fast module replacement in permanently wall-mounted installations without rear access disruption.
High refresh rate delivers smooth flicker-free visuals for broadcast cameras, live streaming, and professional video production environments.
Consistent color accuracy and brightness across wide horizontal and vertical viewing angles for large audience corporate and retail environments.

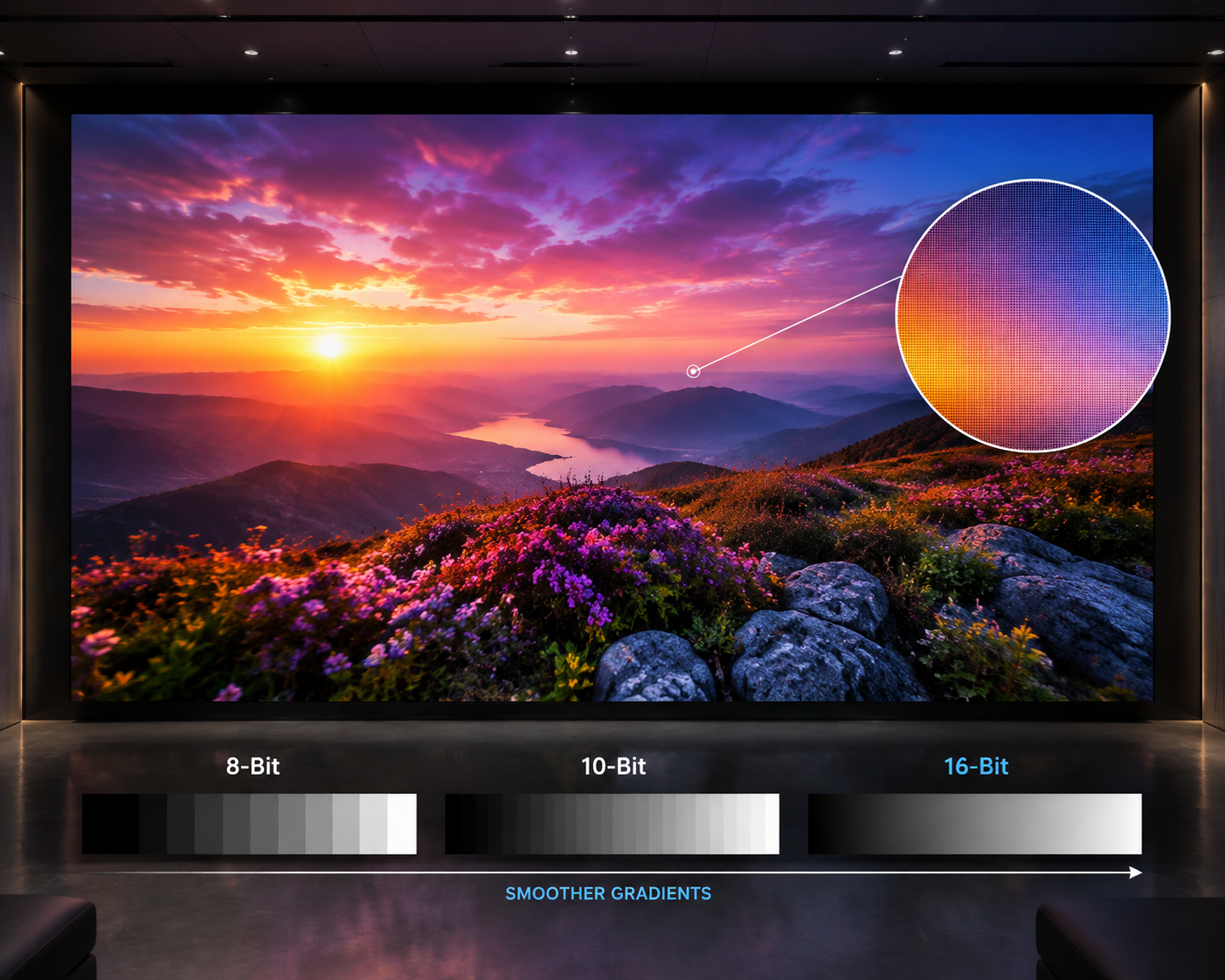

Over 65,000 grayscale levels deliver smooth color gradients and natural lifelike visuals across all Optima Plus display configurations and content types.
| Specifications | SH-OPTIMA-1.5 | SH-OPTIMA-1.8 | SH-OPTIMA-2.0 | SH-OPTIMA-2.5 | SH-OPTIMA-2.9 |
|---|---|---|---|---|---|
| Pixel Pitch (mm) | 1.5 mm | 1.8 mm | 2.0 mm | 2.5 mm | 2.9 mm |
| Cabinet Size | 500 × 500 | 500 × 500 | 640 × 640 | 640 × 640 | 640 × 640 |
| Maintenance Method | Front | Front | Front | Front | Front |
| Brightness (nits) | 700–900 | 800 | 800 | 900 | 900 |
| IP Rating | IP30 | IP30 | IP30 | IP30 | IP30 |
| Viewing Angle (H×V) | 160° × 160° | 160° × 160° | 160° × 160° | 160° × 160° | 160° × 160° |
| Refresh Rate | ≥3840 Hz | ≥3840 Hz | ≥3840 Hz | ≥3840 Hz | ≥3840 Hz |
| Cabinet Type | Die-Cast Magnesium | Die-Cast Magnesium | Die-Cast Magnesium | Die-Cast Magnesium | Die-Cast Magnesium |
| Power (Avg/Max) | 150W / 500W | 180W / 550W | 180W / 550W | 200W / 600W | 200W / 600W |
| Data Processing | 16-bit HDR | 16-bit HDR | 16-bit HDR | 16-bit HDR | 16-bit HDR |
| LED Technology | SMD | SMD | SMD | SMD | SMD |
| Contrast Ratio | 6000:1 | 5500:1 | 5500:1 | 5000:1 | 5000:1 |
| Cabinet Weight | 6–7 kg | 6–7 kg | 6–7 kg | 7–8 kg | 7–8 kg |
| Operating Temperature | –10°C to +45°C | –10°C to +45°C | –10°C to +45°C | –10°C to +45°C | –10°C to +45°C |
Contact us for a custom quote and expert consultation.
